Performance Components
- Processor: AMD Ryzen 7 PRO 3700U (4 Cores / 8 Threads, 2.3 GHz base frequency, up to 4.0 GHz Max Boost, 4MB L3 Cache).
- Graphics: Integrated AMD Radeon RX Vega 10 Graphics (10 Cores, 1400 MHz frequency).
- Memory (RAM): 16GB DDR4 clocked at 2400 MHz.
- Important Note: RAM is completely soldered to the system board and cannot be upgraded after purchase.
- Storage: Up to 1TB M.2 2280 NVMe PCIe SSD.
Display Options (14.0-inch, 16:9 Aspect Ratio)
All display panels are 14.0 inches, anti-glare, and utilize IPS technology, but vary by sub-configuration:
- FHD On-cell Touch: Full HD (1920 x 1080), Multi-touch, 300 nits brightness.
Connectivity & Ports

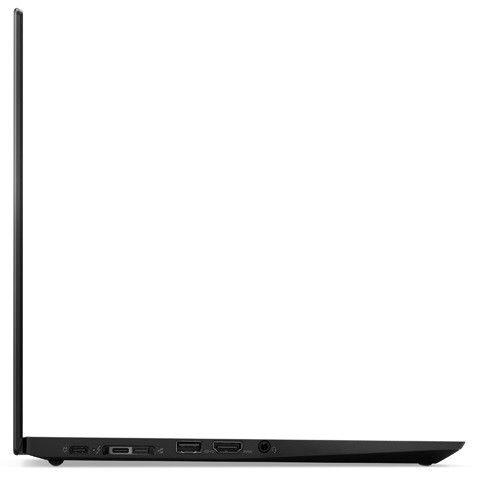

- I/O Ports:
- 2 x USB-C (Supports data transfer, Power Delivery, and DisplayPort)
- 2 x USB 3.1 Gen 1 (One Always On)
- 1 x HDMI 2.0
- 1 x 3.5mm Headphone / Microphone combo jack
- 1 x MicroSD card reader
- 1 x Extension connector for Native Ethernet (Requires optional ThinkPad Ethernet Extension Adapter Gen 2 to convert to an RJ45 port).
- Wireless:
- Intel Wireless-AC 9260, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 5.1.
- WWAN (Optional): Upgradeable 4G LTE via Fibocom L850-GL M.2 card with Nano-SIM slot.
Audio, Multimedia & Input
- Audio: Dual 1W speakers with Dolby Audio Premium, dual-array far-field microphones.
- Camera: HD 720p resolution with ThinkShutter physical privacy cover (Optional hybrid IR camera for Windows Hello facial recognition available).
- Keyboard: Six-row, spill-resistant ThinkPad design with TrackPoint pointing device and Trackpad (Optional white LED backlighting).
Battery & Power
- Battery Capacity: 57Wh integrated Lithium-Polymer battery.
- Battery Life: Up to 16.4 hours (dependent on workload and display type, with Low Power panels maximizing uptime).
- Power Supply: 65W USB-C AC adapter, supporting Rapid Charge (charges up to 80% capacity in 1 hour).
Design, Material & Security
- Dimensions:
- Low Power models: 328.8 x 225.8 x 16.1 mm
- Touch / PrivacyGuard models: 329.0 x 226.15 x 16.7 mm
- Weight: Light profile starting at 1.25 kg (2.76 lbs) up to 1.33 kg (2.93 lbs) depending on display type.
- Materials: Carbon Fiber Reinforced Plastic (CFRP) hybrid top cover, with a Magnesium-Aluminum bottom chassis.
- Security: Discrete TPM 2.0 security chip, Match-on-Chip touch fingerprint reader, and Kensington Lock slot
